Product Introduction

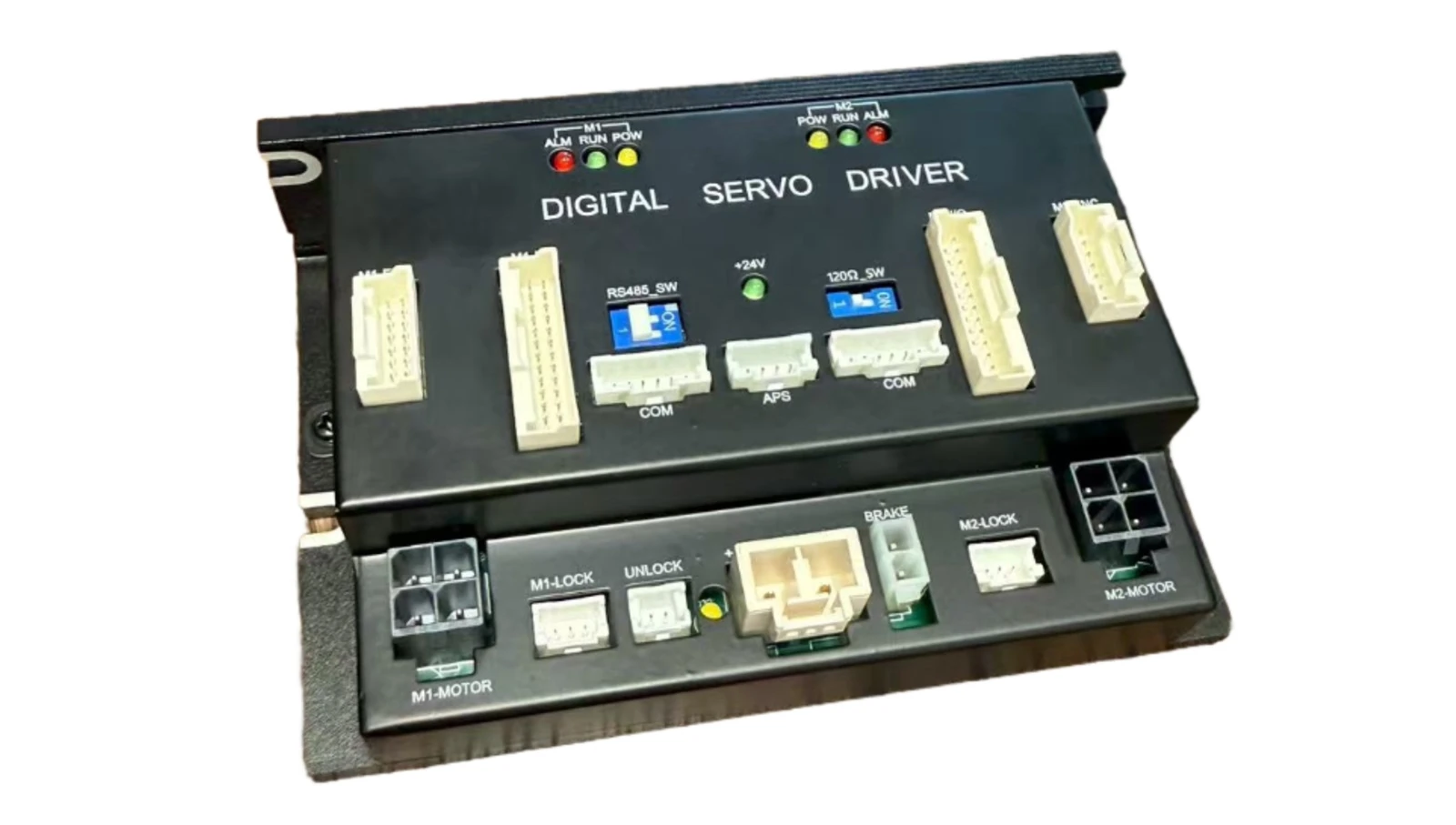

The IXLD Series is a highly integrated dual-channel servo drive designed for efficient and compact multi-axis motion control applications. It supports two independent motor outputs within a single unit, providing a space-saving and cost-effective solution for systems requiring synchronized or coordinated motion-such as AGVs, compact robotic arms, gantry systems, and automation platforms.
Operating in extreme temperatures down to -50°C, it is built for reliability in demanding industrial, outdoor, and cold-chain environments.

Key Features & Performance Parameters

Parameter	Specification
Channels	Dual independent motor outputs
Rated Current per Channel	16A continuous
Peak Current per Channel	32A
Input Voltage Range	20–80 VDC
Motor Compatibility	BLDC, Brushed DC, PMSM
Control Methods	Pulse/Direction, Analog Voltage (±10V)
Communication Protocols	CANopen, Modbus
Encoder Support	Incremental, Absolute (NRZ Tamagawa, BiSS C, SSI)
Operating Temperature	-50°C to +xx°C (ambient based on cooling)
Certifications	CE, UL compliant (subject to final validation)

Product Advantages

Advantage	Description
Space & Cost Efficiency	One drive controls two motors, reducing system footprint, wiring complexity, and overall cost.
High Power Density	Delivers 32A peak current per channel in a compact form factor, ideal for power-constrained mobile and embedded systems.
Wide Compatibility	Supports all common low-voltage motor types and mainstream absolute encoder protocols for flexible system integration.
Extreme Environment Ready	Rated for -50°C operation, ensuring performance in freezing outdoor, cold storage, and harsh industrial settings.
Easy Integration	Standard CANopen and Modbus interfaces enable seamless connectivity to PLCs, controllers, and IoT platforms.

Services We Provide

Service	Details
Custom Configuration	Tuning of control parameters, communication setup, and encoder matching for your specific motors.
Prototyping Support	Supply of engineering samples and validation support for integration testing.
Technical Documentation	Comprehensive datasheets, wiring diagrams, Modbus/CANopen profile guides, and API documentation.
System Integration Guidance	Assistance with multi-axis synchronization, thermal design, and network configuration.
Scalable Manufacturing	Support from low-volume batches to high-volume production with consistent quality control.
Compliance & Certification	Access to test reports and support for regional certification extensions (CE, UL, UKCA, etc.).
